Kunde: NCC Construction
Byggeår: 2008
Sted: Håkonsvern, Bergen
Konstruksjonstype: Dock gate
Omfang: 1,000 m2 – Height: 40 metres

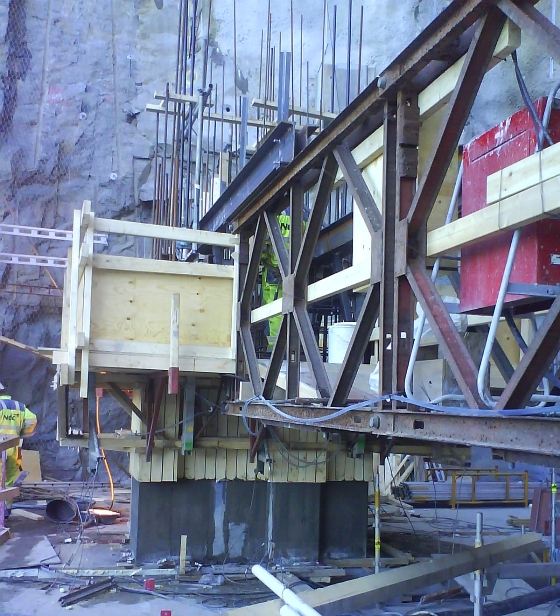

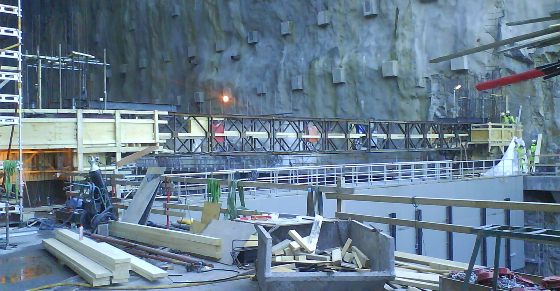

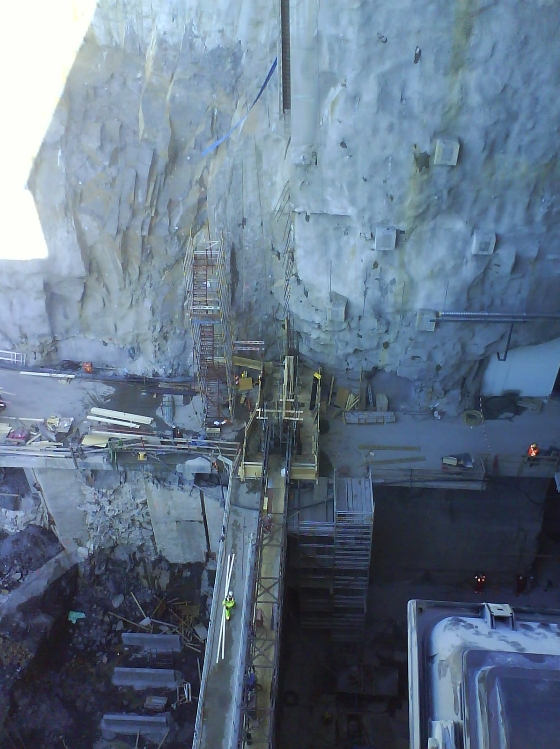

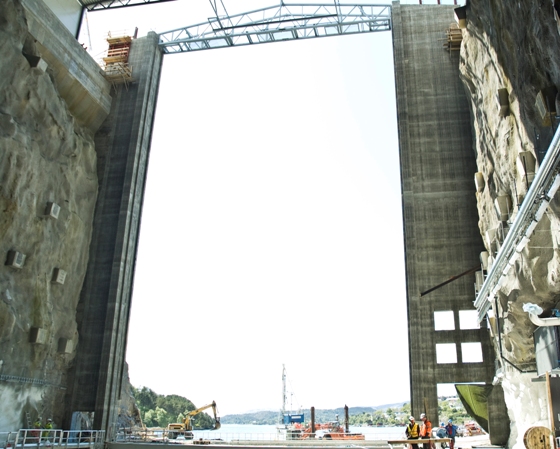

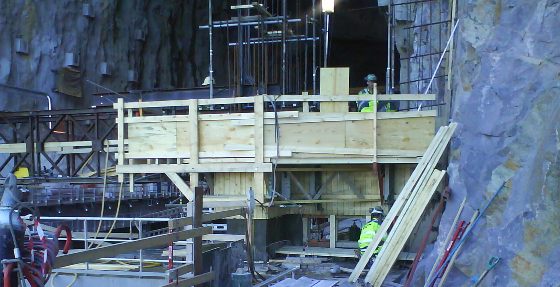

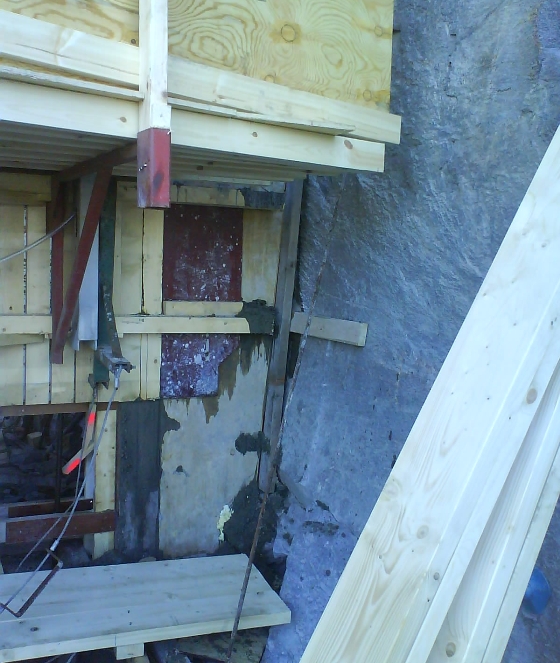

This was a very special project, of a type that had never previously been performed. The frame of the dock gate itself was built using sliding formwork. The tolerance for the distance between the two slides was very small, and the gates were cast into the mountain on the opposite side. One of the gates started with a width of 7.5 metres and maintained roughly the same width all the way up, while the other one started at 3.5 metres and increased to 6.5 metres. The slide was executed in spring 2008.

Flere bilder:
